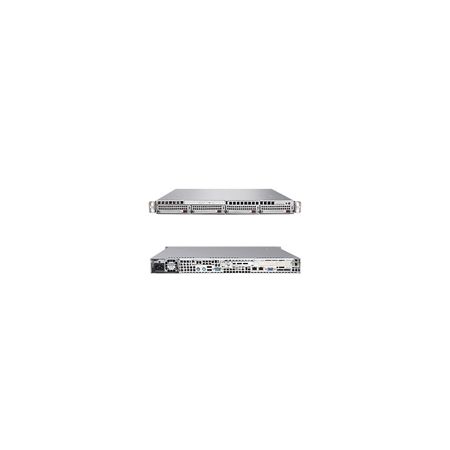

Supermicro A+ Server 1021M-T2V Barebone System Item # 188978
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
188978
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
A+ Server benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end PC/server industry. After all, Supermicro provides the most outstanding product line in the industry. Their proven high level of quality and performance has made A+ Servers the platform of choice for supercomputer clusters and enterprise databases as well as business-critical, front-end server applications.
Product Details
| Item # | 188978 |
| Manufacturer # | 1612292 |
| Ethernet Technology | Gigabit Ethernet |
| RAID Levels | 0, 1, 0+1, 5 |
| Processor Supported | Opteron |
| height | 1.7 in |
| Additional Information | Expansion Slot Detail:Left Universal Slot supports: 1 x PCI-express x8 Slot OR 1 x 64-bit 133MHz PCI-X slot; Right Universal Slot supports: 1 x PCI-express x8 Slot OR 1 x 64-bit 100MHz PCI-X slot |
| Total Number of USB Ports | 2 |
| Optical Media Supported | DVD-ROM |
| Graphics Controller Manufacturer | ATI |
| Optical Drive Type | DVD-Reader |
| Number of Universal I/O Slots | 2 |
| width | 17 in |
| Product Line | A+ Server |
| package contents | A+ Server 1021M-T2V Barebone System; 1 x Super H8DMR-i2 Motherboard; 1 x 1U Silver SC815+ Chassis; 1 x 60cm SATA Cable; 1 x 35cm SATA Cable; 1 x 16-pin to 16-pin Round Cable; 1 x 8-pin to 8-pin Ribbon Cable for SGPIO; 1 x Power Cord; 2 x 48cm SATA Cable; 1 x 70cm SATA Cable; 1 x Driver CD; 4 x 3-pin Cooling Fan; 1 x Fan Holder for 6x Fans; 2 x Dummy Fan; 4 x Silver Hot-swappable Hard Drive Trays; 1 x 1U SATA / SAS Backplane; 2 x 1U Passive Heatsink for AMD Socket F CPUs; 1 x 1U Mounting Rail Kit |
| depth | 25.6 in |
| Product Name | A+ Server 1021M-T2V Barebone System |
| HyperTransport Speed | 1000 MHz |
| Rack Height | 1U |
| manufacturer | Supermicro Computer, Inc |
| Number of 3.5" Bays | 4 |
| VGA | Yes |
| weight | 42 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 32 GB |
| Number of Total Memory Slots | 8 |
| controller type | Ultra ATA/133 (ATA-7); Serial ATA/300 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 2 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR2-667 |
| Power Factor Correction | Yes |
| Number of Power Supplies Installed | 1 |
| Number of Total Expansion Slots | 2 |
| Processor Socket | Socket F LGA-1207 |
| Chipset Model | nForce MCP55 Pro |
| Number of Total Expansion Bays | 4 |
| Chipset Manufacturer | NVIDIA |
| Graphics Controller Model | ES1000 |
| form factor | Rack-mountable |
| Memory Technology | DDR2 SDRAM |
| color | silver |
| warranty length | 3-year limited |
| model name | 1021M-T2V |
